ADP Enterprise

Audience: Administrators



Overview

ADP Enterprise is a customizable HRCM solution for large businesses (1000+ employees). OrgChart integrates directly with ADP Enterprise.

The following article provides detailed information on:

• The fields OrgChart can pull from ADP Enterprise
• Setting up an ADP Detailed merge data source to pull fields that require the Additional Detailed pull

Note

To set up a direct integration with ADP Enterprise, or for instructions on how to modify your current configuration, please reference the ADP article.

ADP Enterprise field compatibility

OrgChart can pull the following fields from ADP Enterprise:

ADP Field	OrgChart Field	Pull Type
First Name, Last Name	Name	Standard
First Name	First Name	Standard
Last Name	Last Name	Standard
Job Title	Title	Standard
Associate ID	PersonID	Standard
Reports to Employee ID	WorkerID	Standard
Report to Associate OID	Supervisor ID	Standard
Reports to Employee ID	Supervisor Worker ID	Standard
Job Code	Job Code	Standard
DEPTID (Auto-generated by ADP)	DEPTID	Standard
DEPTID Code (Auto-generated by ADP)	DEPTID Code	Standard
PAYDEPTID (Auto-generated by ADP)	PAYDEPTID	Standard
PAYDEPTID Code (Auto-generated by ADP)	PAYDEPTID Code	Standard
Work Phone	Phone	Standard
Email Address	Email	Standard
Location	Location	Standard
Work Location	Work Location	Standard
Work Location ID	Work Location ID	Standard
Annual Salary	Annual Salary	Additional
Assigned Shift	Assignment Term	Additional
Currency	Currency	Additional
FLSA	FLSA	Additional
Worker Category	FTE	Additional
FTE	FTE Ratio	Additional
File #	File #	Additional
Gender	Gender	Additional
Personal Mobile	Mobile	Additional
Calculated based on Annual Salary and Exchange Rate	Normalized Salary	Additional
Pay Frequency Code	Pay Cycle Code	Additional
Pay Grade	Pay Grade	Additional
Pay Grade Code	Pay Grade Code	Additional
Pay Group Code	Payroll Group Code	Additional
Zip Code	Postal Code	Additional
Current Salary	Salary	Additional
Calculated based on Work Location	State Code	Additional
Position Status	Status	Additional
Calculated based on Birth Date and Current Date	Age	Additional Detailed
Benefits Status	Benefits Eligibility Class	Additional Detailed
Birth Date	Birthdate	Additional Detailed
Ethnicity	Ethnicity	Additional Detailed
Hire Date	Hire Date	Additional Detailed
Pay Rate	Hourly Rate	Additional Detailed
Union Code	Labor Union	Additional Detailed
Officer/Owner	Officer Type	Additional Detailed
Position Start Date	Recent Hire Date	Additional Detailed
Seniority Dates	Seniority Date	Additional Detailed
Calculated based on Position Start Date and Current Date	Years in Position	Additional Detailed
Calculated based on Hire Date and Current Date	Years of Service	Additional Detailed

Important

Fields that require an Additional Detailed pull can only be accessed through the ADP Detailed merge data. For more information, reference the Setting Up an ADP Detailed Data Pull section of this article.

Note

Certain sensitive personal information may be masked in the ADP Marketplace Data Connector Application Profile. If you are having trouble pulling certain fields into OrgChart, verify that your ADP Permissions are configured correctly with your ADP Rep.

Setting up an ADP Detailed Merge

In order to pull fields that require an 'Additional Detailed' pull (listed in the ADP Enterprise Field Compatibility table above), an OrgChart admin must add the ADP Detailed merge data source to their chart configuration. The following section provides step-by-step instructions for setting up an ADP Detailed merge in your account.

Important

Enabling the ADP detailed merge source will disable your ability to pull data from ADP on-demand. To ensure that your org chart stays up to date, ensure that you schedule a refresh in the Chart Settings: Refresh panel.

Optionally, in order to preserve your ability to refresh your charts on-demand, you can upload an Excel or CSV file containing the fields and field values that require the Additional Detailed pull, rather than using the ADP detailed merge data source. For more information, or to discuss your options further, please contact OrgChart Support.

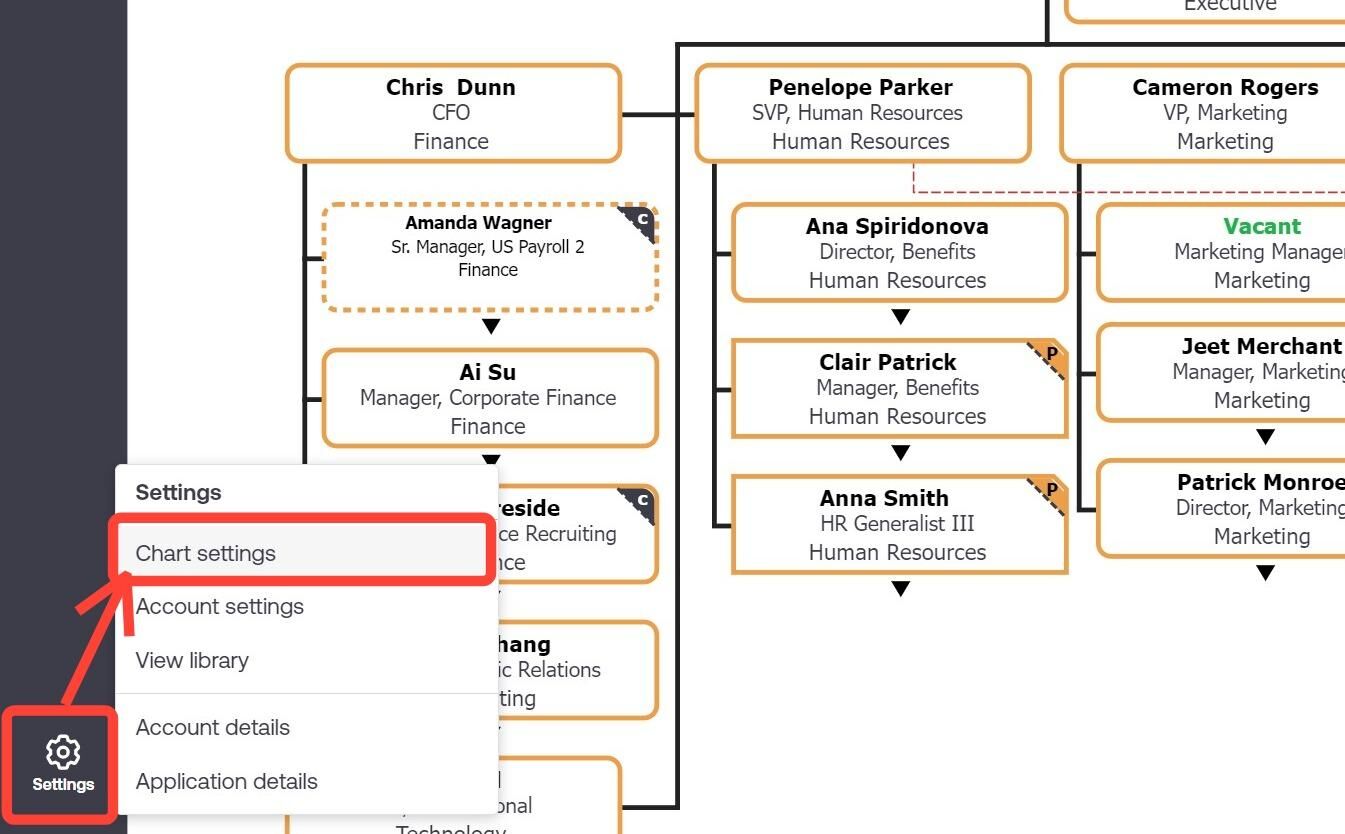

1. Click on the Settings button in the bottom right corner, and then select the Chart Settings option from the list.

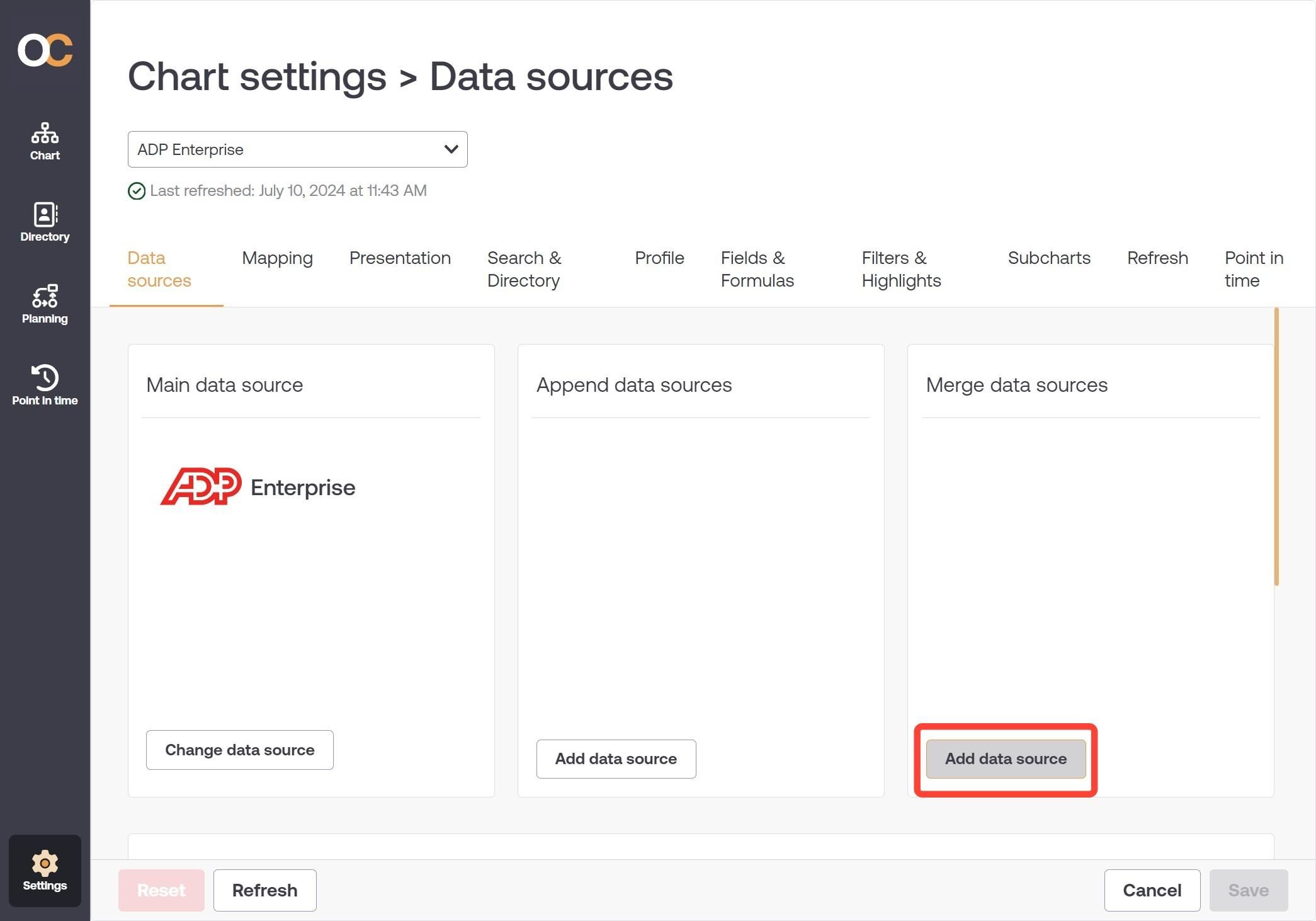

2. Click on the Add data source button under the Merge data sources heading.

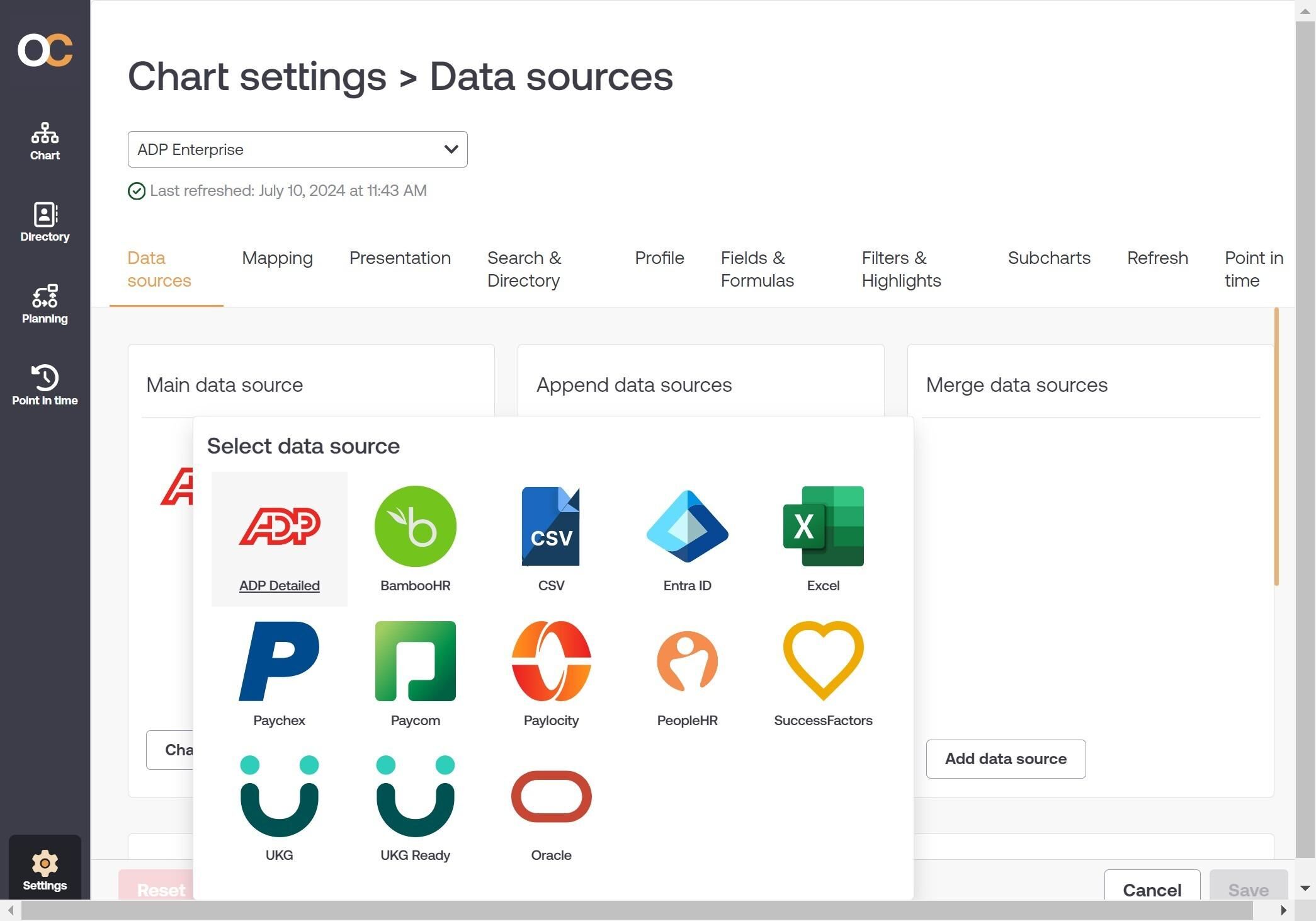

3. Select ADP Detailed from the list of merge data sources.

4. The ADP detailed configuration panel is displayed. Click on the Additional fields drop down menu, and then toggle the fields ON that you'd like to pull into OrgChart.

Note

The list of additional fields shown here will contain fields that do not require the ADP Detailed merge data source in order to be pulled into OrgChart. Please reference the table above, so that you select only the necessary fields.

5. Similarly, click on the Custom fields menu to toggle custom fields ON that you'd like to pull into OrgChart.

Note

Custom fields are only available after the first successful refresh of your chart. Please refresh your chart at least once before attempting to pull custom fields.

6. Click on the Load field mapping button.

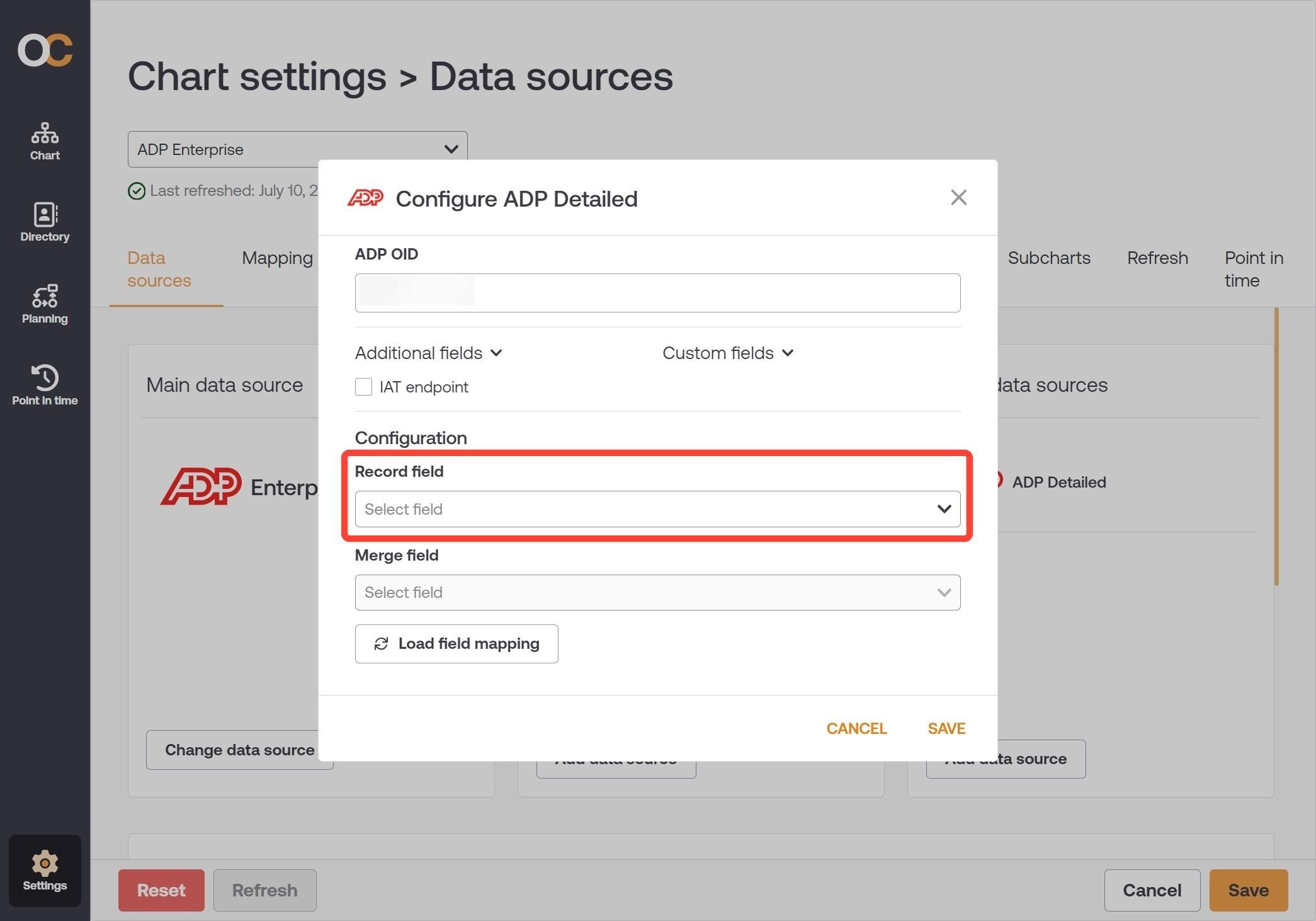

7. Click on the Record field option, and then select the PersonID option from the dropdown menu.

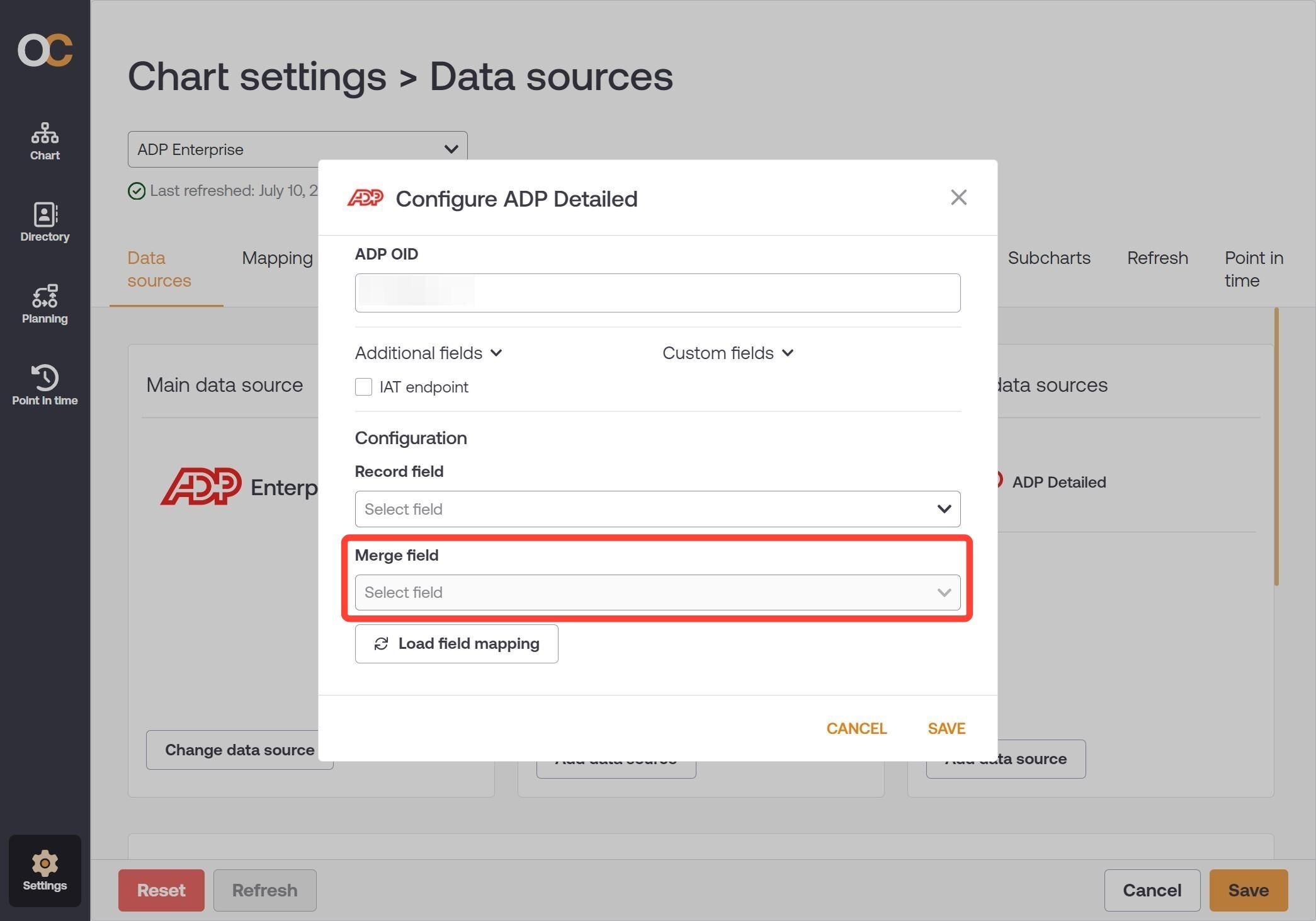

8. Click on the Merge field option, and then select the PersonID option from the dropdown menu.

9. Click on the Save button to preserve your changes.

10. Once you've updated your ADP detailed merge configuration, click on the Save option in the Chart settings: Data source panel. The fields will be pulled into OrgChart after your next scheduled refresh.
